<azonenberg>

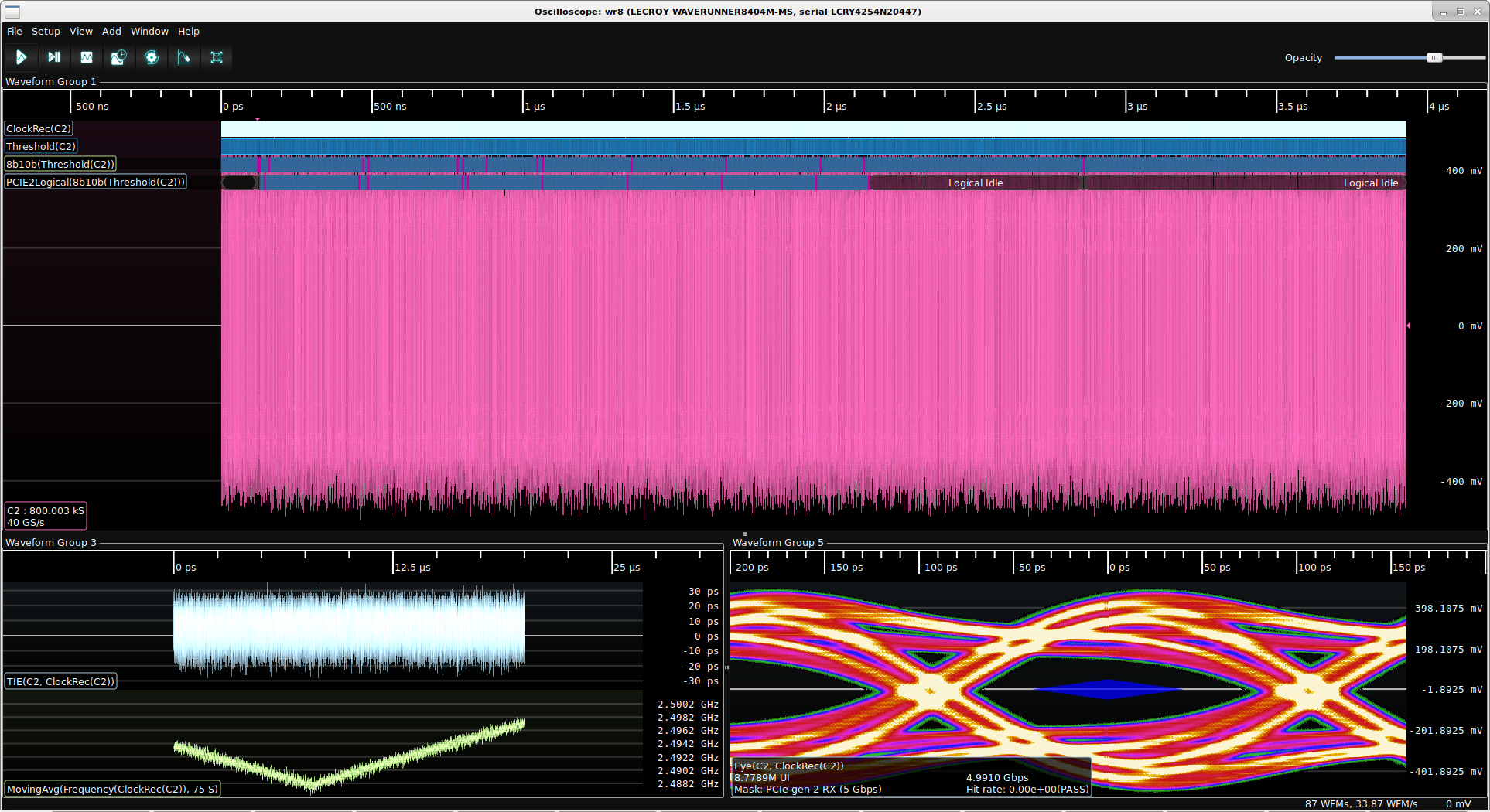

Playing with some 5 Gbps PCie
<azonenberg>
so far its not decoding right, i get a bazillion 8b10b errors
<azonenberg>
the eye is pretty open so i have to debug more, i feel like i'm probably misaligning somehow
<azonenberg>
I got exactly one SKIP sequence in my test that gave me a valid decode
<azonenberg>
every other time even though the waveform looked almost the same i got garbage
<azonenberg>
so i think my 8b10b decode isnt liking the data for some reason
<monochroma>
:o
<azonenberg>
ok its more complicated than that, the pll is involved too i think
<azonenberg>
So, to start... i originally wrote the 8b10b aligning code for Ethernet
<azonenberg>
And 1000base-X has *huge* numbers of commas in the idle sequences between packets
<azonenberg>
So your SNR for alignment is superb
<azonenberg>
to give you an idea, on the saved test waveform i was working with for 1000base-X, I have 2 commas at offset 6, 3020 at offset 1, and none at any other phase
<azonenberg>
So it's extremely obvious what the correct alignment is
<azonenberg>
PCIe and SATA have much less commas because they send scrambled data between packets
<azonenberg>
Which means i need to be able to do a valid alignment with a much smaller number of commas
<azonenberg>

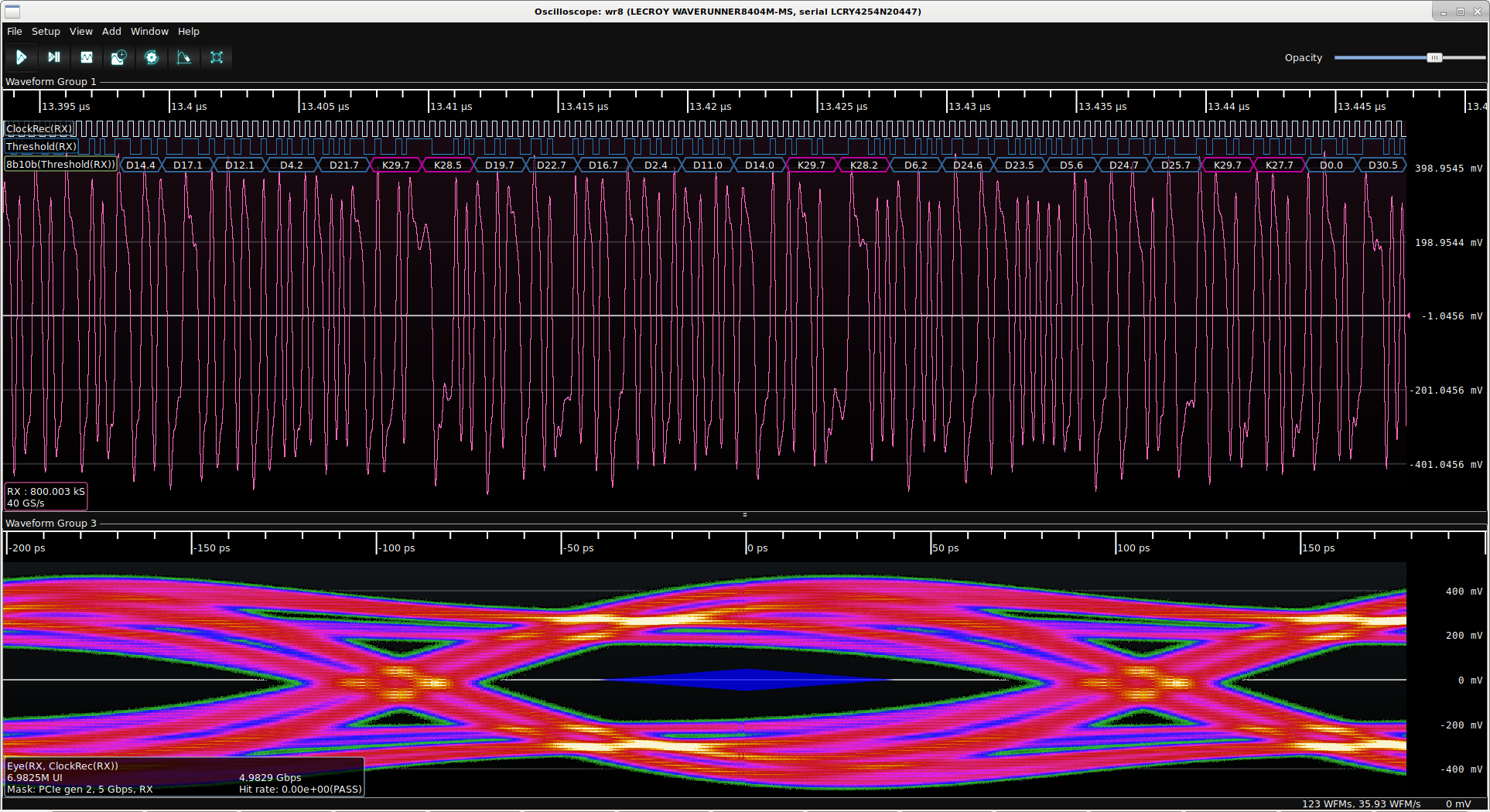

The problematic sequence i'm seeing now is K29.7 K28.5 K28.0
<azonenberg>
end of good packet, comma, skip
Degi has quit [Ping timeout: 256 seconds]
<azonenberg>
K29.7- is 1011101000 and K28.5- is 0011111010
<azonenberg>
The thing is, K29.7 K28.5 combined forms 10111010000011111010 which has five zeroes and five ones in a row back to back
<azonenberg>
I think what might be happening is that at high data rates compared to the sample rate, it doesn't take a lot of drift for the PLL to desync enough that you get a bit error at the end of that long run
<azonenberg>
What i'm seeing in the error case is that I decode the bit sequence as ...10100000, but then only four 1s before going low
<azonenberg>
so i align to the false negative comma
Degi has joined #scopehal
<azonenberg>
The fact that PCIe uses a spread spectrum clock probably doesn't help
<azonenberg>
Because my PLL currently is low-order and doesn't track the rate of change of frequency
<azonenberg>
So basically i think the failure mode is the perfect storm of relatively low oversampling, (deliberate) clock drift, very few commas in the data, and then a long run of bits with a false comma right before the real one
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/Jk27h
<_whitenotifier-f>
[scopehal] azonenberg 3e227da - IBM8b10bDecoder: synchronize only to K28.5, not any other commas. This works fine for most standard protocols, and prevents aligning to false comma sequences.
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/Jk25J
<azonenberg>
miek: That's a very good question. I'm not entirely clear what the difference is between a glitch and pulse width trigger on lecroy
<azonenberg>
i implemented a UI to configure the various settings on the scope
<azonenberg>
but it doesn't really look any different from a width trigger setting wise
<azonenberg>
i haven't done much experimentation to figure that out
<azonenberg>
in any case, we have a pulse width trigger type
electronic_eel has quit [Ping timeout: 240 seconds]
electronic_eel has joined #scopehal
<_whitenotifier-f>
[scopehal] azonenberg pushed 2 commits to master [+0/-0/±3] https://git.io/JkacO
<_whitenotifier-f>
[scopehal] azonenberg 5019815 - LeCroyOscilloscope: detect active probes and don't allow changing coupling on them. Fixes #344.
<_whitenotifier-f>
[scopehal] azonenberg d0e4f58 - LeCroyOscilloscope: Don't allow changing attenuation on active probes
<_whitenotifier-f>
[scopehal] azonenberg closed issue #344: LeCroyOscilloscope: handle "DC" coupling type for active probes. Don't try to change attenuation on them - https://git.io/Jk2i8
<_whitenotifier-f>
[scopehal-apps] miek commented on issue #284: Agilent MSOX2024A - Performance issues and crash - https://git.io/JkaBZ
<_whitenotifier-f>
[scopehal] miek opened pull request #347: AgilentOscilloscope: support pulse width trigger - https://git.io/JkaVt
<azonenberg>
miek: your PR looks good except for one minor change
<azonenberg>
rather than using PushFloat() like you have, just use to_string_sci()
<azonenberg>
which is a scopehal equivalent to std::to_string(double) that outputs scientific notation
<azonenberg>
So you can just do SendCommand( path + to_string_sci(f) )
<azonenberg>

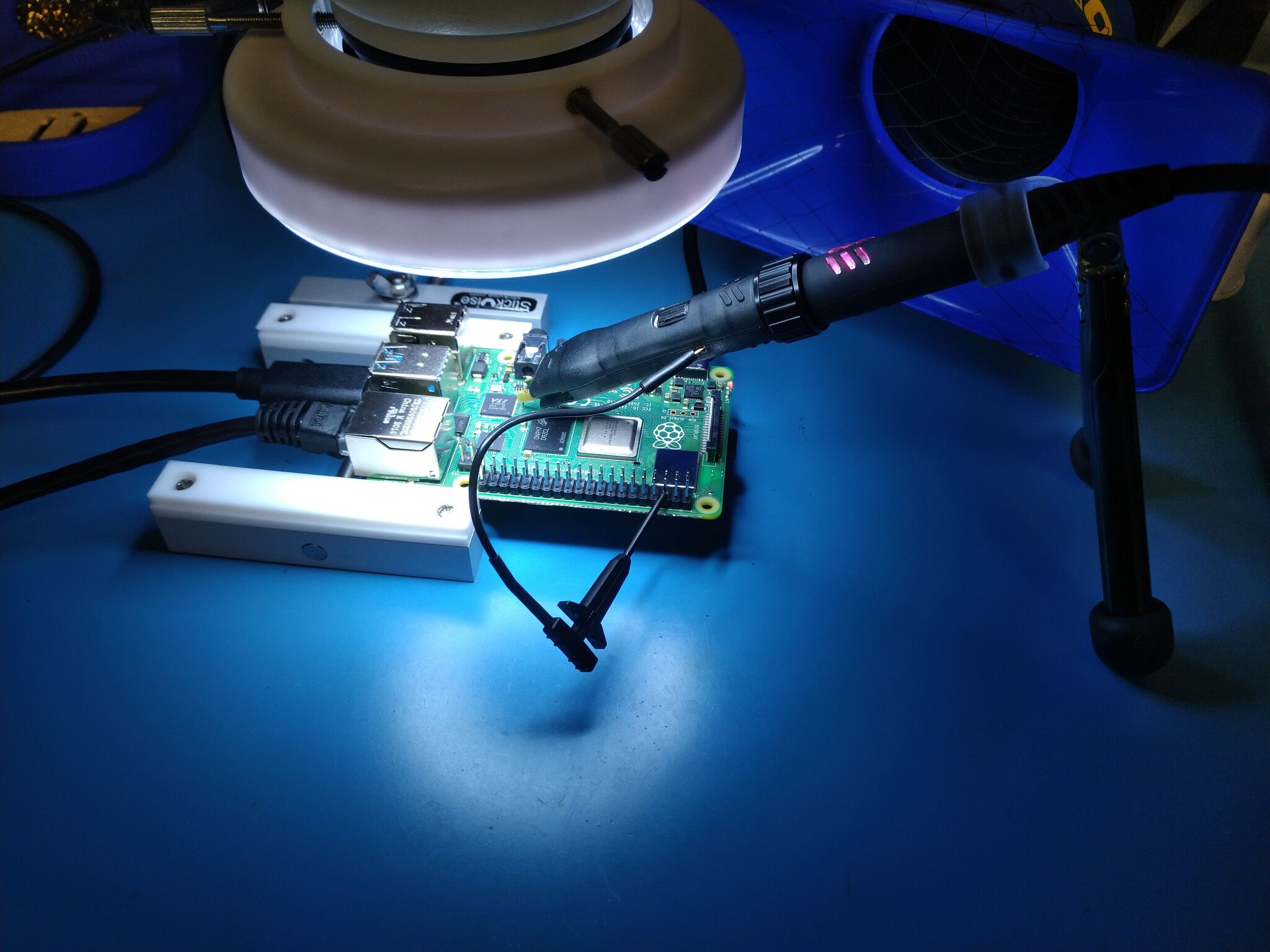

this is the probe setup. Loving this diffprobe so far, my main complaint is that i don't (yet) have two. And the price tag of course
<lain>
how much was that one again?
<azonenberg>
the order for the solder-in one is pending though... so in a few weeks i should be able to probe both the tx and rx sides
<azonenberg>
the one here or the solder-in?
<lain>
both
<azonenberg>
this one was about 3.8K after tax and shipping
<lain>
yow
<azonenberg>
The D420 was $1760 plus tax and shipping, plus $275 to cal it to the WL-PBUS which I bought from a third party for $500 + shipping from tel aviv
<azonenberg>
Yeah. the combo of these probes, and upgrading sonnet to l2 silver next month, is eating the entirety of my lab budget for Q4 2020
<azonenberg>
and probably dipping a bit into Q1 2021 so i can recover my savings :p
<lain>
:3
<lain>
hehe
<azonenberg>
but for the stuff it's allowing me to do, it's definitely worth it
<azonenberg>
at this point i can basically see any serial data stream up to 10 Gbps
<azonenberg>
and do SI work out to 1-2 Gbps
<lain>
excellent
<azonenberg>

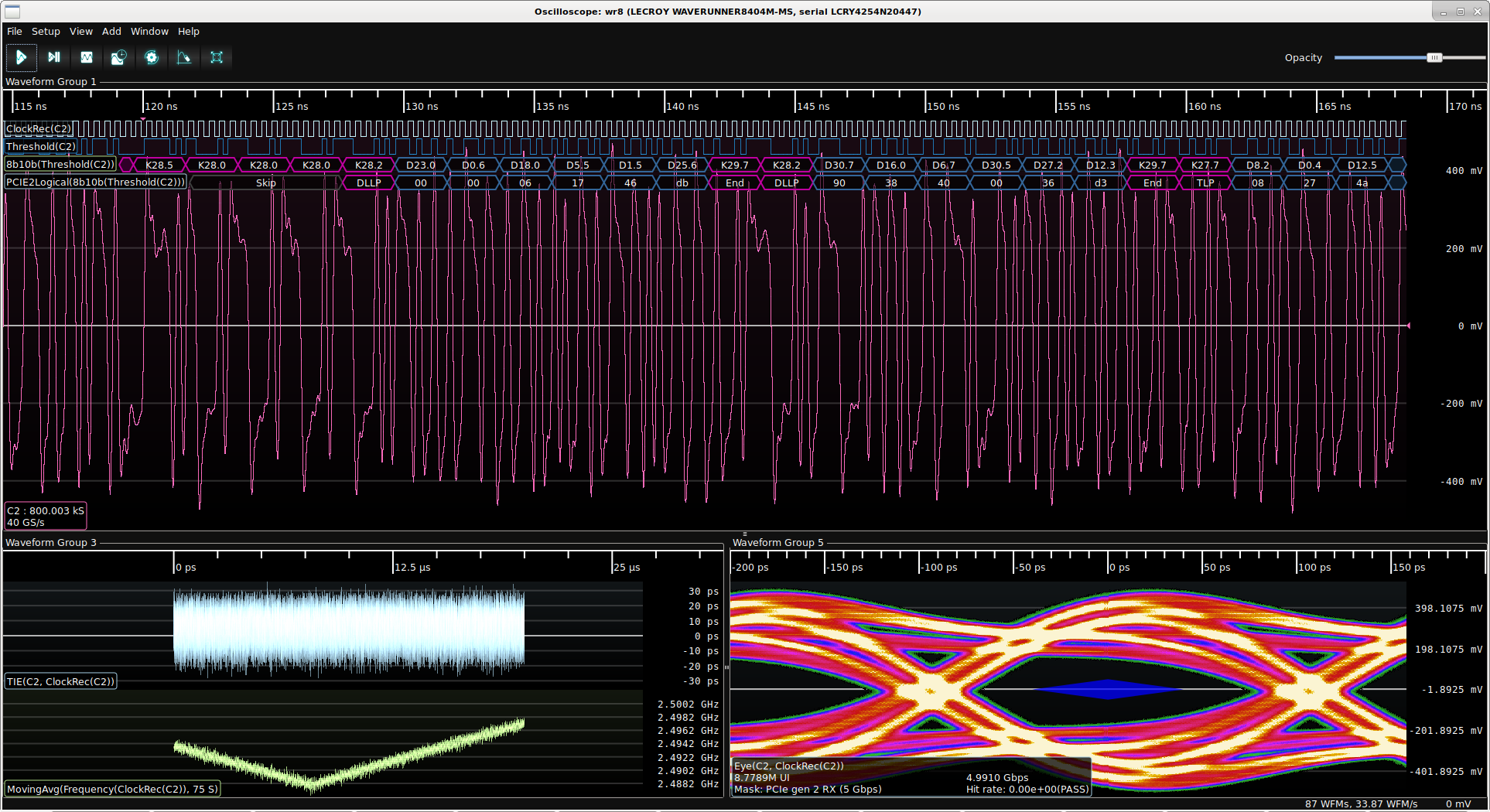

incidentally, i can actually read part of an ethernet frame already
<azonenberg>
i have a usb3 to gig-e dongle plugged into that port and i'm ping flooding some other host on the lan from it
<azonenberg>
to generate pcie traffic for me to look at
<azonenberg>
there's a TLP early on in my capture that obviously contains a linux ping payload
<azonenberg>
i see incrementing byte sequences then 4 random-looking bytes that are obviously the FCS
<azonenberg>
(the ethernet/ip headers must be in an earlier TLP off the start of my capture)
juli966 has joined #scopehal
<lain>
ha
<azonenberg>
now what would be really cool is if i set the phy to 100baseTX
<azonenberg>
and could decode the frame off the wire
<azonenberg>
and also see the pcie traffic that generated it
<azonenberg>
I might try that later on
<monochroma>
XD
<azonenberg>
That would actually be a really nice demo
<azonenberg>
but oh wait
<azonenberg>
it's not pcie to ethernet, it's pcie to usb3 to ethernet
<azonenberg>
i guess i need to make a usb3 decode too :p
<azonenberg>
Seeing every step on the path would be nice
<monochroma>
just need to decode usb3, and then the usb ethernet layer ;)
<azonenberg>
Lol
<azonenberg>
i mean if i was actually doing serious debug
<azonenberg>
i might do that
<azonenberg>
write a decoder for either the pcie or usb protocol for the specific chipset i was working with
<monochroma>
yeah, hopefully you never get in that situation
<azonenberg>
Lol yeah
<azonenberg>
But it would be a nice demo of the things you can do with scopehal that are just outright impossible in another platform
<azonenberg>
with lecroy software, decoding ethernet and IP inside of pcie tlps just isn't a thing
<azonenberg>
in scopehal, it's totally doable
<monochroma>
:3
<azonenberg>
all you'd need to do is make a decode that takes a pcie tlp stream as input, figure out which TLPs went to a single frame, then call EthernetDecoder::BytesToFrames() on it
<azonenberg>
boom, full ethernet decoding, integration with all of the upper layer protocol decodes, wireshark, the works
<azonenberg>
i might actually do that at some point just for kicks if the protocol doesnt look too nasty
<azonenberg>
not the full chain, just demonstrating ethernet decoding inside of pcie
<azonenberg>
would it be super useful? no. is it a cool tech demo? absolutely
<azonenberg>
The implication to users being, you can go build this for whatever protocol your system uses
<azonenberg>
I will probably make a decode for FTDI chips at some point too
<azonenberg>
that takes in a usb data stream and outputs uart text and metadata or something
<monochroma>
i remember having to manually decode IP frames on an inline USB sniffer between the DUT and cellular modem, wishing i could just feed the USB CDC ACM into a decoder to decode the PPP frames, and just give me the IPv4 packet dump
<azonenberg>
lol
<azonenberg>
that's the exact type of scenario i'm talking about
<_whitenotifier-f>
[scopehal] azonenberg opened issue #348: PCIe gen 1/2: Known plaintext calculation of scrambler state during beginning of waveform - https://git.io/JkaQP
<_whitenotifier-f>
[scopehal] azonenberg labeled issue #348: PCIe gen 1/2: Known plaintext calculation of scrambler state during beginning of waveform - https://git.io/JkaQP
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/Jka7l
<_whitenotifier-f>
[scopehal] azonenberg 5570c94 - PCIe logical: Fixed handling of "scrambler desynced" payloads if we have other control characters before the first K28.5. See #35.
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±2] https://git.io/JkVkL
<_whitenotifier-f>
[scopehal] azonenberg 178889d - PCIeGen2LogicalDecoder: Use known plaintext to sync to LFSR earlier during idles rather than waiting for a K28.5 to reset it. Fixes #348.
<_whitenotifier-f>
[scopehal] azonenberg closed issue #348: PCIe gen 1/2: Known plaintext calculation of scrambler state during beginning of waveform - https://git.io/JkaQP
<azonenberg>
ok so this was a fun optimization
<azonenberg>
rather than waiting for a K28.5 comma character, which resets the scrambler
