<azonenberg> So this is lovely
<azonenberg> Trying to figure out how to deskew my LA and analog channels on the lecroy driver correctly
<azonenberg> it seems the LA board has its own RTC separate from the scope
<azonenberg> And it's currently *14 seconds* fast
<azonenberg> so trigger times are all out of whack
<azonenberg> yet somehow the scope has some other way to figure out timing because analog waveforms on the display reliably show ~100ns offset from digital
<azonenberg> oho
<azonenberg> The HorStart flag seems to be what I need
<_whitenotifier-5> [scopehal] azonenberg pushed 2 commits to master [+2/-0/±11]
<_whitenotifier-5> [scopehal] azonenberg b7ee8e7 - LeCroyOscilloscope: parse <HorStart> tag in digital waveforms to correctly display skew between analog and digital channels. Fixes #404.
<_whitenotifier-5> [scopehal] azonenberg 793895b - Initial implementation of DDR1 command bus protocol decode
<_whitenotifier-5> [scopehal] azonenberg closed issue #404: LeCroy: digital and analog channels displayed out of sync with each other -
Degi has quit [Ping timeout: 265 seconds]
Degi has joined #scopehal
<_whitenotifier-5> [scopehal-docs] azonenberg pushed 2 commits to master [+0/-0/±2]
<_whitenotifier-5> [scopehal-docs] azonenberg 6648ff0 - Initial documentation of Pico driver
<_whitenotifier-5> [scopehal-docs] azonenberg 8c7859a - Added heading for DDR1 command bus protocol decode. Added brief intro text for DDR3 and de-embed filters, but not full docs.
<_whitenotifier-5> [scopehal-apps] azonenberg pushed 3 commits to master [+0/-0/±4]
<_whitenotifier-5> [scopehal-apps] azonenberg bb3b775 - Updated submodules
<_whitenotifier-5> [scopehal-apps] azonenberg 2b431a9 - HistoryWindow: when saving waveform metadata, correctly handle negative trigger phase values
<_whitenotifier-5> [scopehal-apps] azonenberg 04173e7 - OscilloscopeWindow: load trigger phase values with full 64 bit integer precision

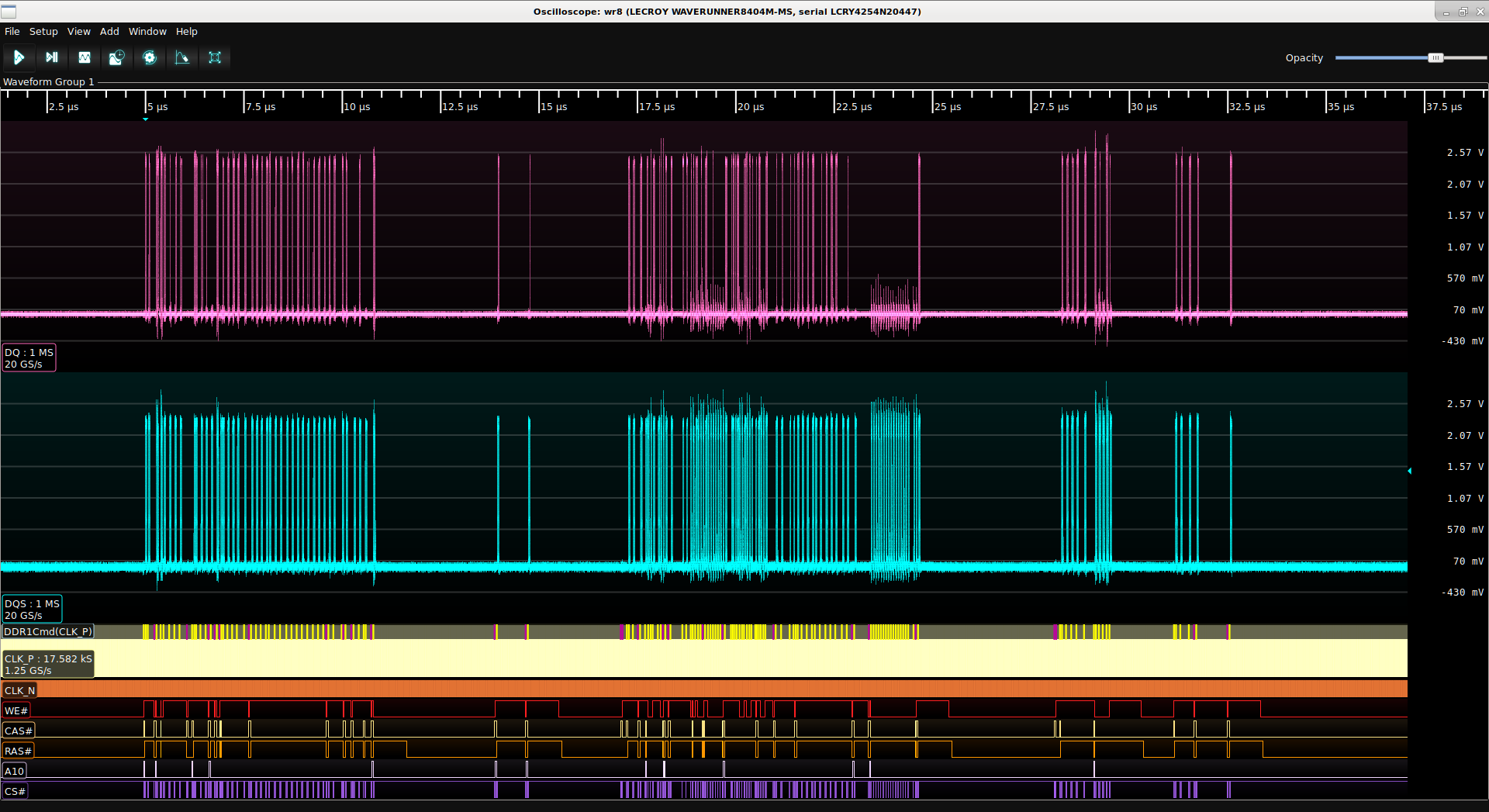

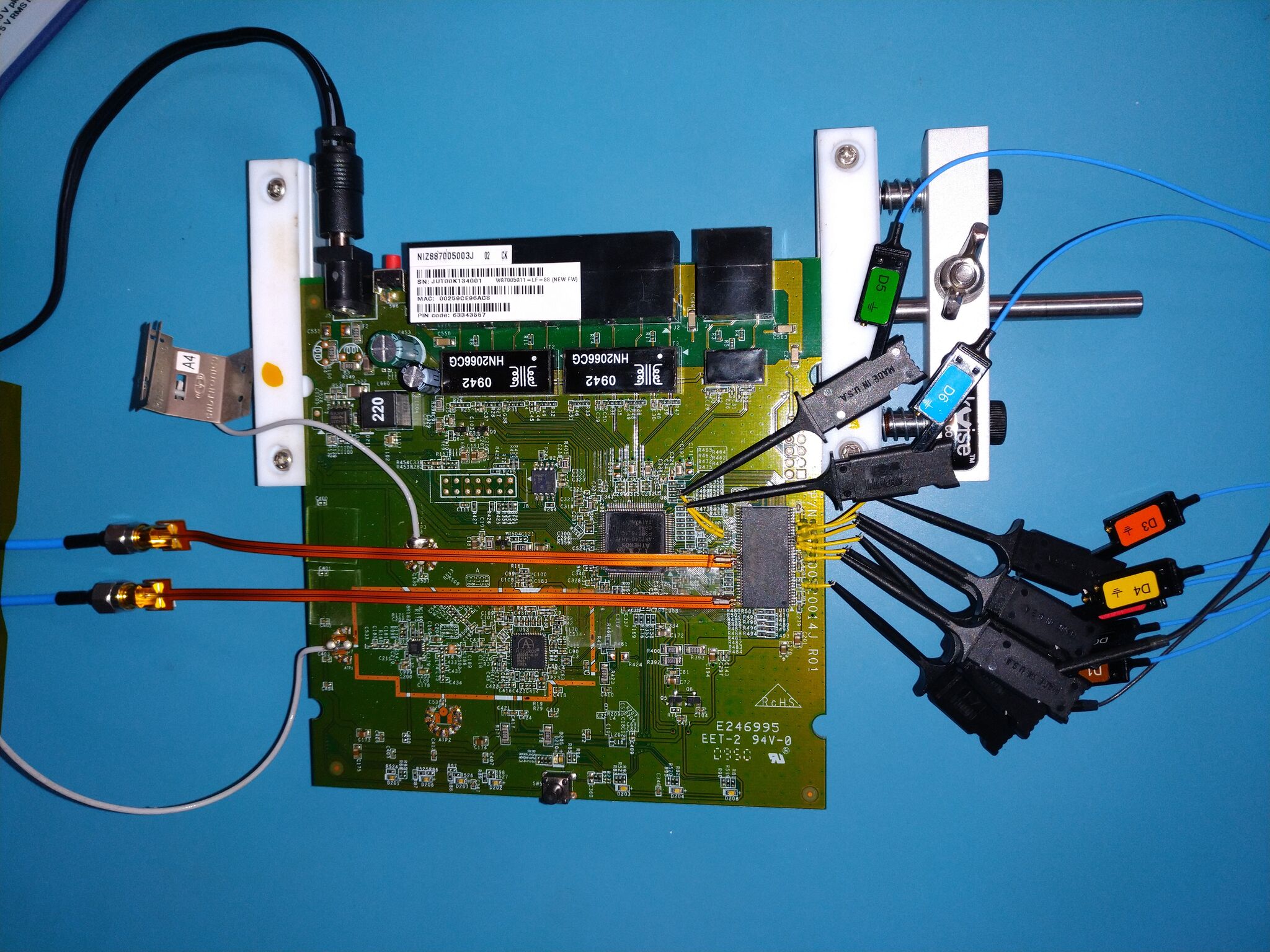

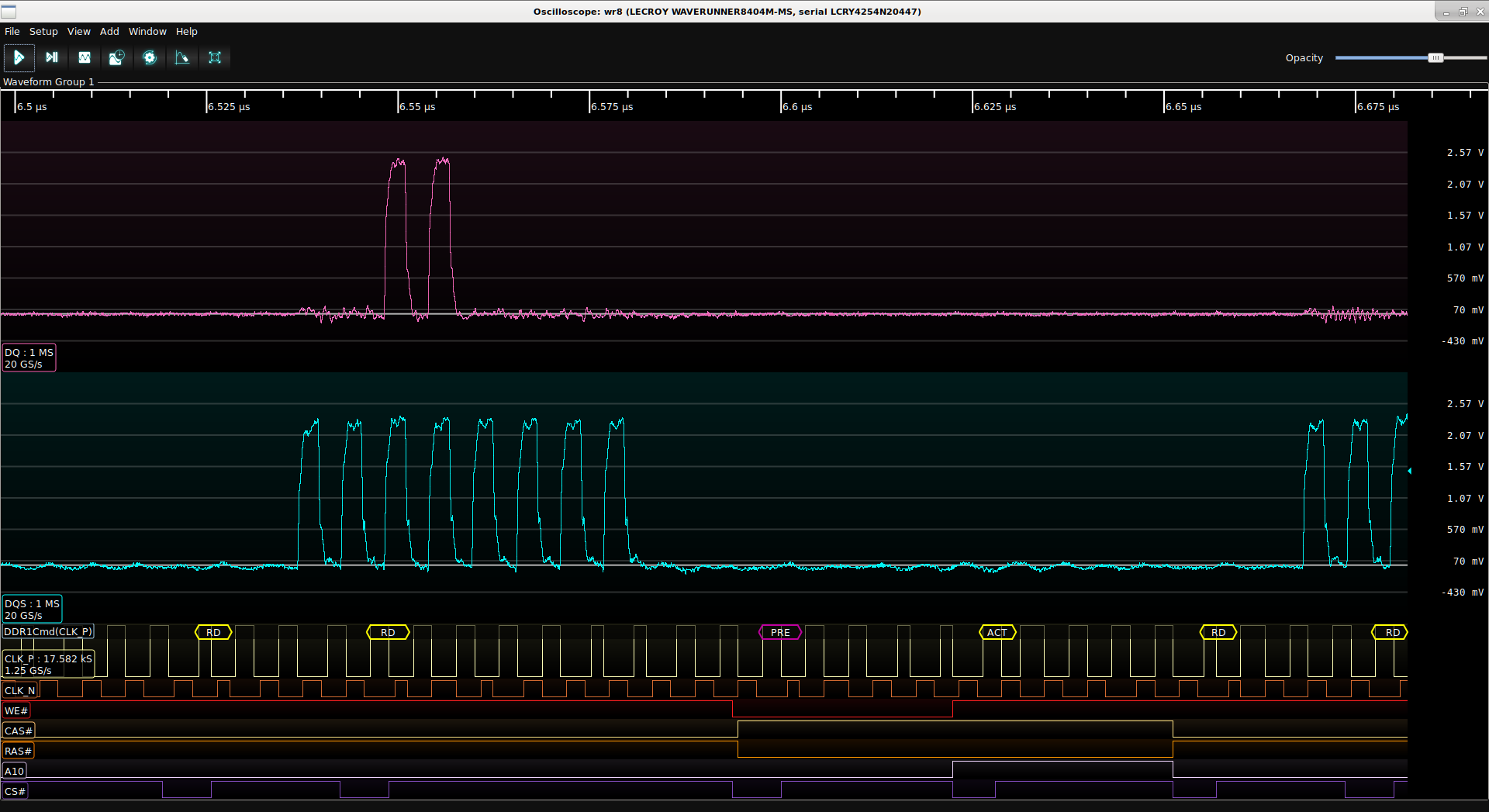

<azonenberg> playing around with the DDR1 protocol decode on an old linksys router
<azonenberg> And now fighting opencl de-embeds giving incorrect results
