[scopehal] azonenberg f497877 - DPhyDataDecoder: better handling of single ended inputs
<_whitenotifier-f>
[scopehal-apps] azonenberg closed issue #221: The preference system should support units - https://git.io/JUjQG
<_whitenotifier-f>
[scopehal-apps] azonenberg closed pull request #259: Implemented units in the preferences system and preferences GUI - https://git.io/JTP5L
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 3 commits to master [+0/-0/±8] https://git.io/JTXBp
<_whitenotifier-f>
[scopehal-apps] azonenberg f762625 - Merge pull request #259 from azonenberg/kathi_dev Implemented units in the preferences system and preferences GUI
Bird|otherbox has quit [Remote host closed the connection]
Bird|otherbox has joined #scopehal
_whitelogger has joined #scopehal
<_whitenotifier-f>
[scopehal] azonenberg pushed 2 commits to master [+0/-0/±3] https://git.io/JTXgy
<_whitenotifier-f>
[scopehal] azonenberg 2be2920 - DPhySymbolDecoder: Reduced glitching on single ended processing
<_whitenotifier-f>
[scopehal] azonenberg d5270fb - DSIPacketDecoder: added protocoal analyzer and various fixes. See #323.

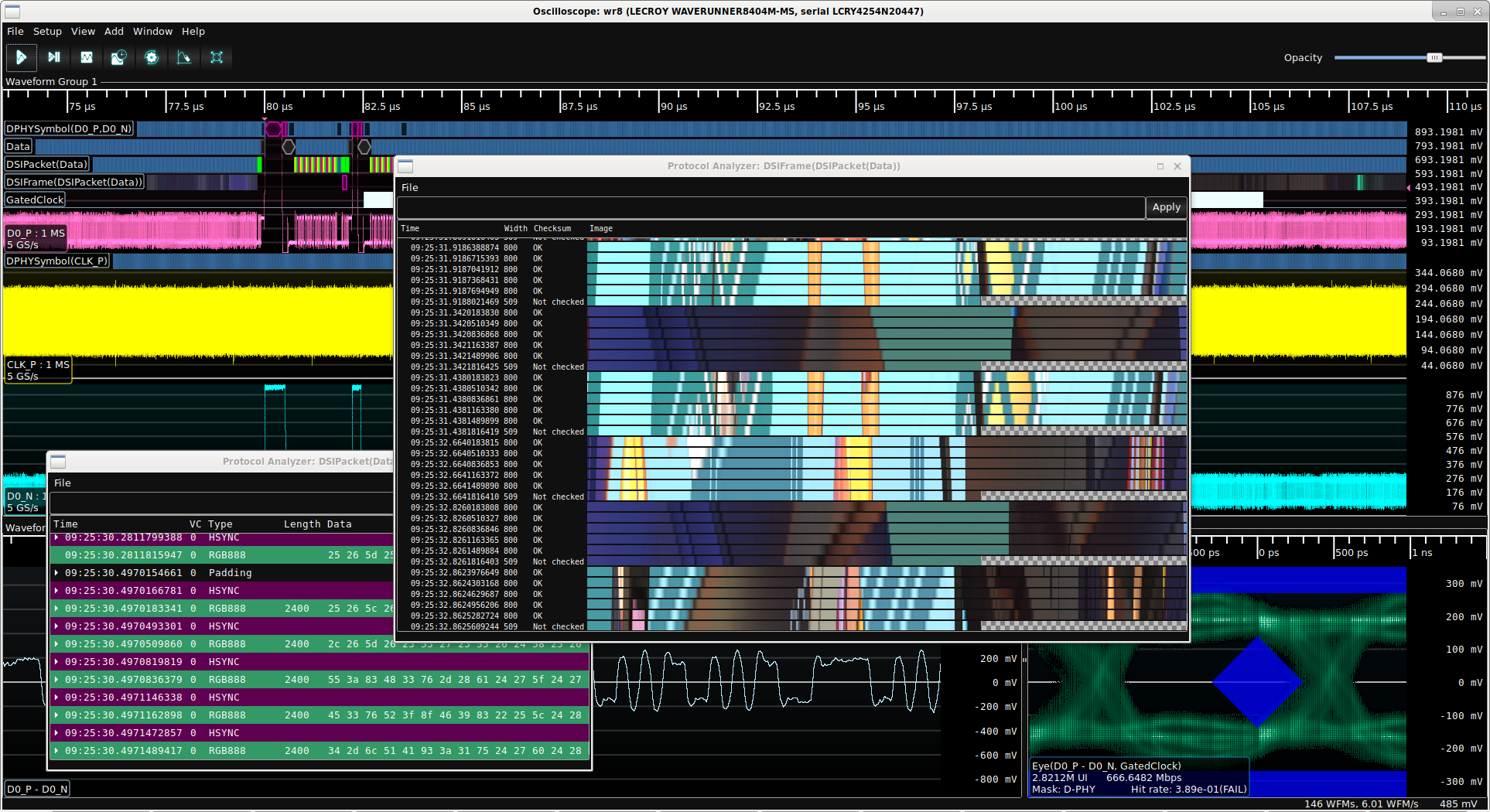

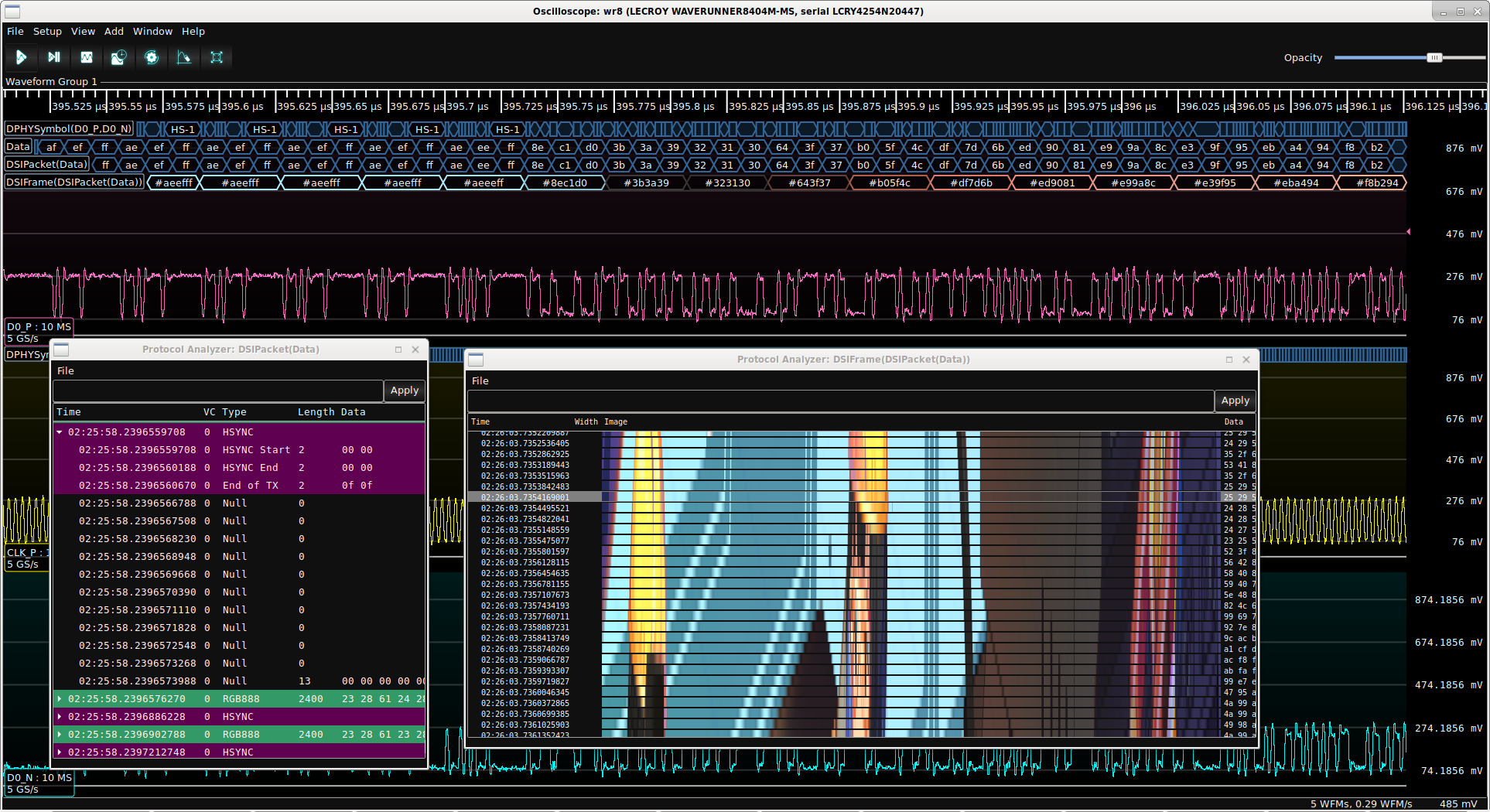

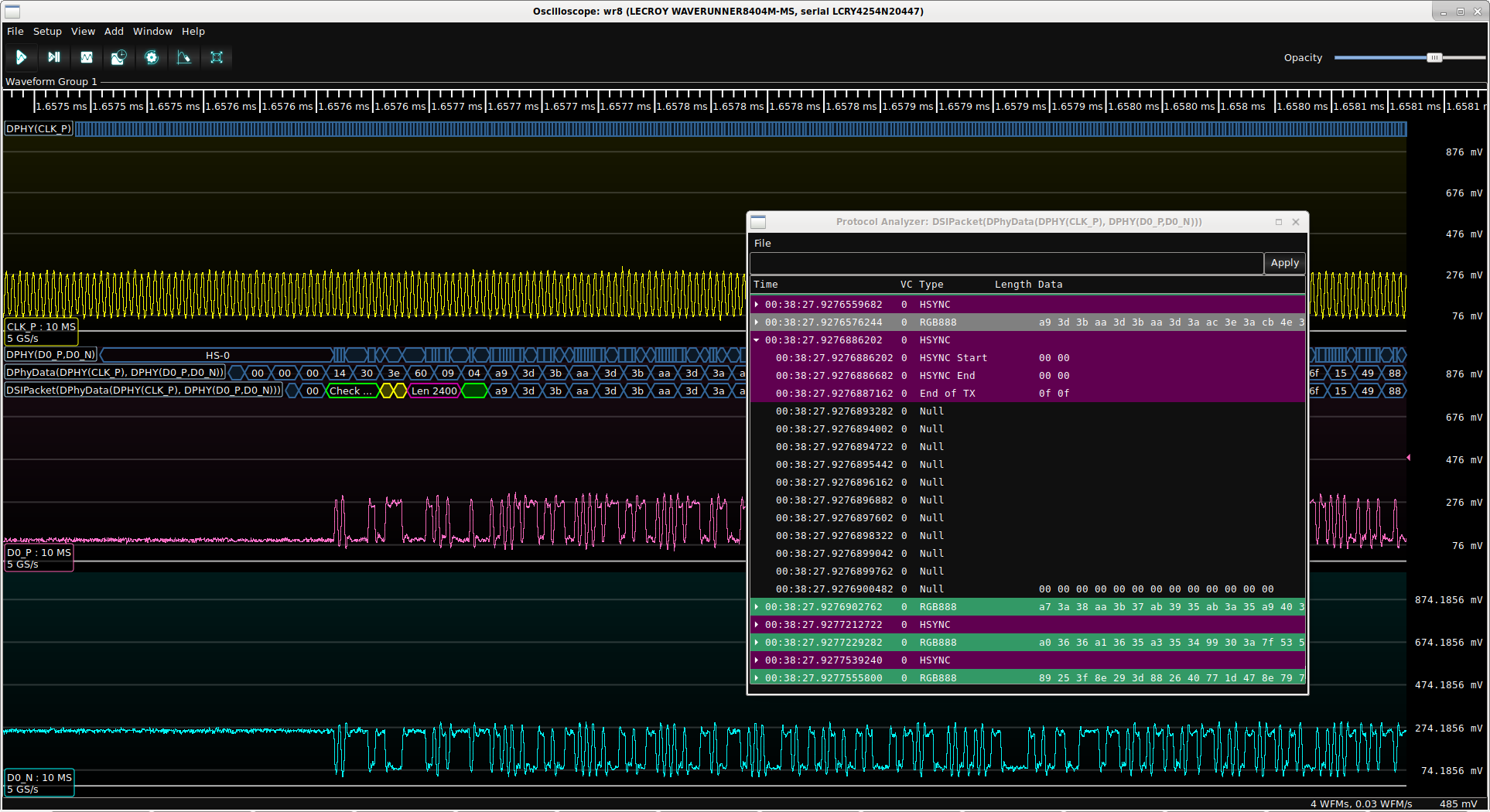

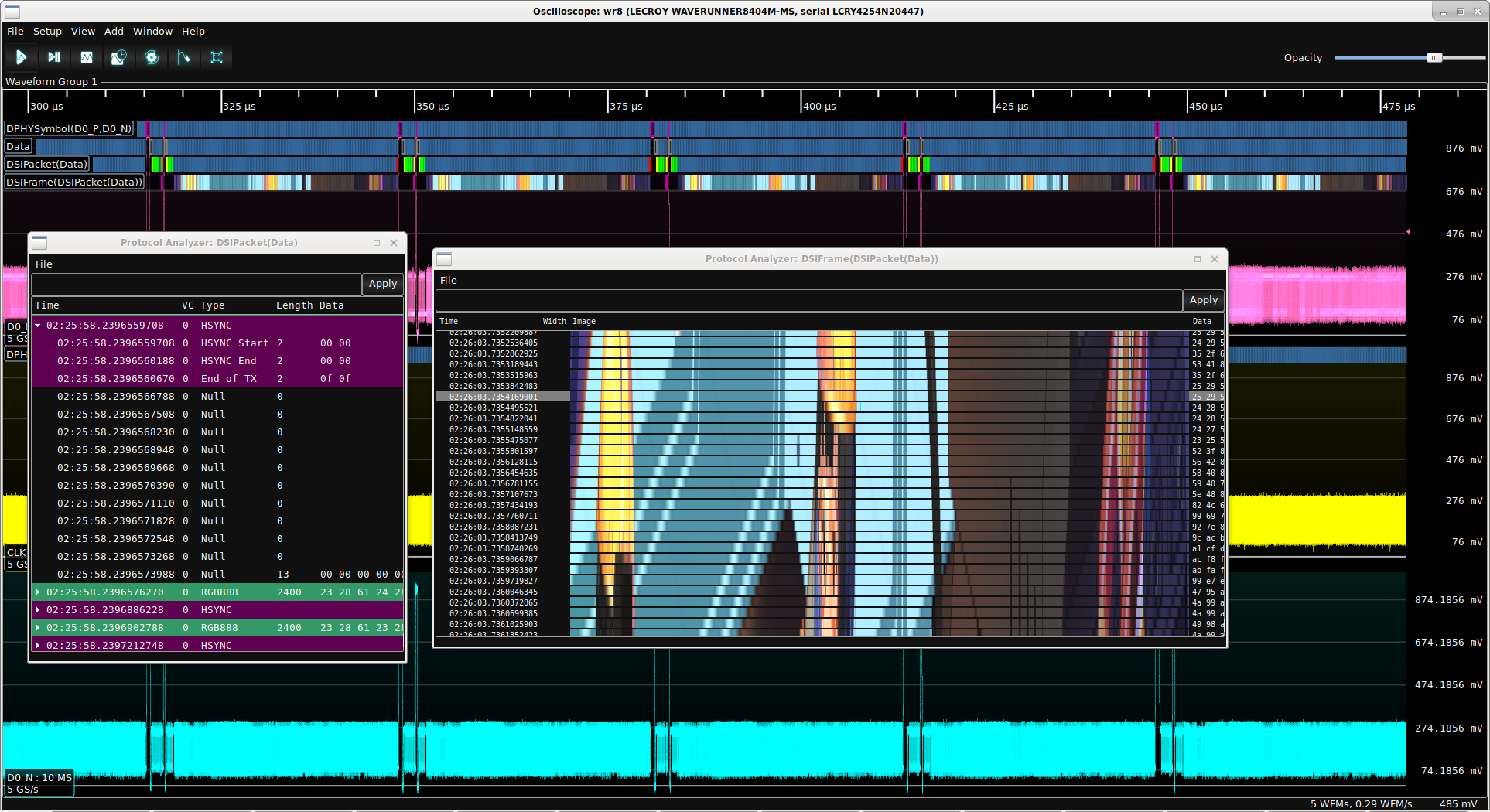

<azonenberg>
I don't have full upper-layer decodes for all of the stuff that happens during link setup like negotiating resolution and video mode
<azonenberg>
but i can display the opcode names as text, and the packet content as hex
<azonenberg>
Which is a good start'
<lain>
azonenberg: hell yes @ ss
<azonenberg>
CSI shouldn't be too hard to build, might even be able to share some of the same code
<azonenberg>
The last thing on my agenda for today mipi-wise is to add a filter that determines if you're in HS or LS mode
<azonenberg>
which can be used as a clock gate for doing HS mode eye patterns
<azonenberg>
actually i guess the better option is just to extract the clock when in HS mode
<azonenberg>
i.e. it would take in a data and clock stream and output a bit clock that only toggles in HS mode
<azonenberg>
Oh, and to add an option for cropping eye patterns to a specific vertical range rather than using the full scale range of the input
<azonenberg>
So i can do HS eye patterns while using the same channel for protocol decoding
<katharinawork>
nice :)
<katharinawork>
im currently pondering about enumeration-style preferences
<azonenberg>
did you look at how i did enum filter parameters for guidance?
<azonenberg>
i'm not saying it's the right way, but that's how i solved ~the same problem
<katharinawork>
im going to look at that now :)
<azonenberg>
one thing it does *not* do is type safety
<azonenberg>
the enums are ints internally
<azonenberg>
and only converted to enum strings for display
<azonenberg>
i mean it's range-safe in that you can't generate an illegal value from the GUI, but it's not strongly types
<azonenberg>
typed*
<azonenberg>
lain: also i can now decode HS mode data single ended
<katharinawork>
yes, i might store the typeid to do at least runtime type safety
<azonenberg>
i improved glitch filtering greatly since yesterday, by not allowing illegal transitions like from LP-00 to HS-1 or HS-* to anything but LP-11
<azonenberg>
as well as adding code to infer the LP-11 / LP-01 / LP-00 start sequence from a single ended capture by jumping straight from LP-11 to LP-00 if the input data is single ended
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±4] https://git.io/JTX1K
<_whitenotifier-f>
[scopehal-apps] azonenberg 18880f3 - Rendering improvements to video framegrabs
katharinawork has quit [Ping timeout: 240 seconds]
katharinawork has joined #scopehal
<_whitenotifier-f>
[scopehal-docs] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/JTXyc
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+2/-0/±6] https://git.io/JTX9u
<_whitenotifier-f>
[scopehal] azonenberg 7c09eef - D-PHY symbol decode now interpolates HS mode zero crossings to sub-sample accuracy for better eye pattern output. Implemented D-PHY HS mode clock recovery. Fixes #329.
<_whitenotifier-f>
[scopehal] azonenberg closed issue #329: Add filter for detecting whether a MIPI D-PHY interface is in the high speed state - https://git.io/JTPs8
<monochroma>
azonenberg: will your decoder show an error if it sees that type of illegal transition?
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±3] https://git.io/JTXda
<_whitenotifier-f>
[scopehal] azonenberg 87c2d08 - EyePattern: allow overriding automatic range detection for MIPI etc. Fixes #330.
<_whitenotifier-f>
[scopehal] azonenberg closed issue #330: Eye pattern: allow vertical range to be fixed - https://git.io/JTPsw
<azonenberg>
monochroma: I output errors in cases when I can tell something is definitely illegal, but around the start of the packet the line floats between states a bit which is expected
<azonenberg>
so i'm pretty permissive with logic levels. the MIPI spec actually says the RX must ignore toggles within that range
<azonenberg>
I do a bunch of glitch filtering and denoising to hide transitions from simple thresholding in that part
<azonenberg>
But i do show errors if i see things that i can confirm aren't right
<monochroma>
cool
<azonenberg>
but for example, HS-0 and LP-00 can easily get confused if you do simple thresholding
<azonenberg>
especially if it's a single ended decode. Differential is far more robust obviously
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±2] https://git.io/JTXdD
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/JT1qB
<_whitenotifier-f>
[scopehal-apps] azonenberg 9d9b7c2 - Fixed D-PHY eye mask Y opening to 140 mV Vod
<katharinawork>
azonenberg not yet, doing stuff for ${DAYJOB}
<azonenberg>
ah ok
<katharinawork>
after the latest Windows 10 update, our "fake" USB mass storage device for programming one of our products just doesnt work anymore which sucks
<tnt>
katharinawork: UF2 ? or something custom ?
<tnt>
(I mean, UF2 being done by microsoft, I'd assume they'd keep that hack working ...)
<katharinawork>
yea UF2
<katharinawork>
we might have fucked up the implementation though
katharinawork has quit [Quit: Leaving]
juli966 has joined #scopehal
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±2] https://git.io/JT1Gu
<_whitenotifier-f>
[scopehal] azonenberg ee94170 - EyePattern: made ReallocateWaveform/RecalculateUIWidth public methods so they can be called from glscopeclient
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±4] https://git.io/JT1GV
<_whitenotifier-f>
[scopehal-apps] azonenberg 9b840b2 - Fixed several bugs in eye pattern resizing
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/JT1ZW
<_whitenotifier-f>
[scopehal-apps] azonenberg 3abfbc1 - Eye pattern: clip compliance testing masks so they don't show up on top of the vertical axis

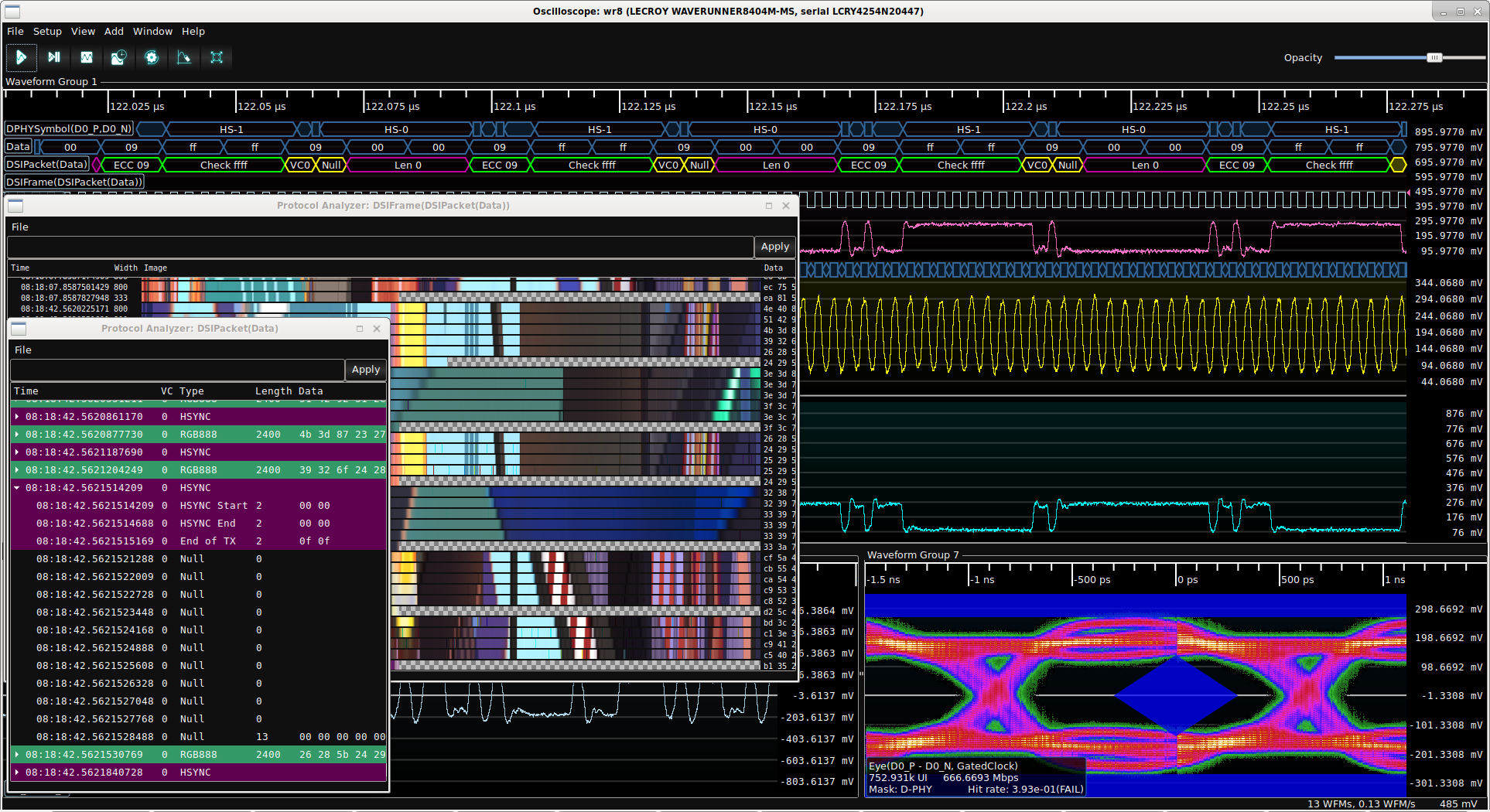

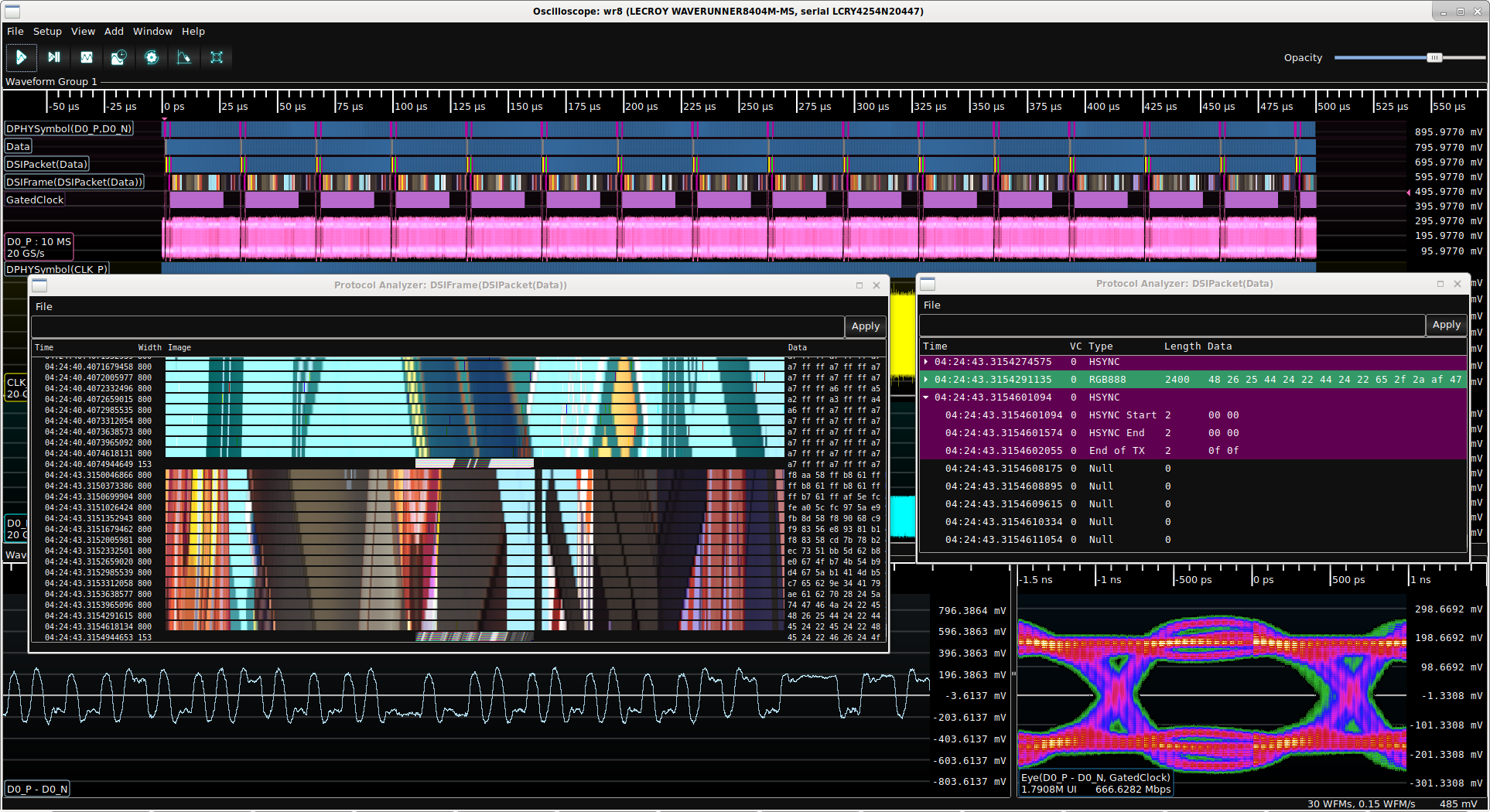

<azonenberg>
I think i'm done with mipi stuff for now
<lain>
sweet
<azonenberg>
the limits i'm using are defined at the pins of the TX
<azonenberg>
so it's slightly degraded at the pi's ribbon header, hence failing
<azonenberg>
i also didn't de-embed the cable or probe and i'm using a fairly long cable (4 feet of RG188)
<azonenberg>
but i feel like the overshoot might be real
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±3] https://git.io/JT187
<_whitenotifier-f>
[scopehal] azonenberg 9fdc385 - Cleaned up DSI checksum calculation. Now display checksum in an additional column of the protocol analyzer view.
<_whitenotifier-f>
[scopehal] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/JT14w
<_whitenotifier-f>
[scopehal] azonenberg 6e92e3d - DPhySymbolDecoder: avoided spurious transitions to LP-00 state
<_whitenotifier-f>
[scopehal-apps] azonenberg pushed 1 commit to master [+0/-0/±1] https://git.io/JT1Be
<azonenberg>
i now display checksum status for each scanline
<lain>
oh nice
<azonenberg>
And while writing it, i discovered they were all failing
<azonenberg>
then found a bug in the DSI decode :p
<monochroma>
yay!
<azonenberg>
tl;dr i was being overly aggressive going from HS-0 to LP-00 state, which isnt legal unless you go through LP-11 first
<azonenberg>
the glitch filter then removed the spurious LP-00
<azonenberg>
but i ended up corrupting a HS-1 i was supposed to have in the middle of all that
<azonenberg>
also cleaned up the checksum calculation code to generate with the reversed crc polynomial rather than the forward one and reversing it
<azonenberg>
anyway i just took apart the test setup, leaving the probes on it for now since i dont want to desolder them quite yet
<miek>
i wonder whether the table views should get some indicator for gaps between triggers? right now it implies that everything's continuous and you'd have to know to look closely at timestamps
<azonenberg>
File a ticket, i wont get to it right away but it probably wouldnt be too hard to add padding between them
<azonenberg>
that's a good idea
<azonenberg>
i'll have to decide how i want it to look, of course
<azonenberg>
but i agree there should be a space of some sort
<azonenberg>
or divider
<_whitenotifier-f>
[scopehal-apps] miek opened issue #260: Indicate gaps between triggers in Protocol Analyzer window - https://git.io/JT10q
smkz has joined #scopehal
<_whitenotifier-f>
[scopehal-apps] LongJohnCoder forked the repository - https://git.io/JfQ2h
